Industrial Edge Banding Rolls for Panel Furniture & Millwork
Manufacturer and direct exporter supplying commercial furniture producers, modular cabinet makers, and architectural distributors with PVC, ABS, acrylic, and wood veneer edge banding. Operating precision extrusion and multi-color printing lines, we deliver consistent width control, exact gloss matching, and stable back-primer formulations tailored for high-speed automated edge-banding machinery.
Product Types
PVC Edge Banding:
Extruded from virgin polyvinyl chloride resin with stabilizing additives. Delivers high impact resistance, chemical durability, and flexible processing for standard office and residential furniture.
ABS Edge Banding:
Chlorine-free thermoplastic material offering high heat resistance up to 100 degrees Celsius and excellent shock absorption. Fully recyclable and suitable for eco-sensitive commercial projects.
Acrylic Edge Banding:
Manufactured with a transparent top layer over a printed or metallic reverse side, creating a three-dimensional depth effect with high scratch and UV resistance.

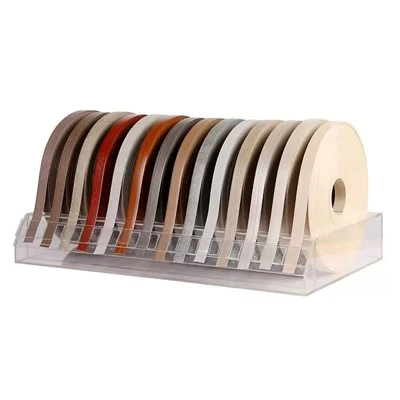

Melamine & Wood Veneer Edge Banding:
Impregnated paper or real wood slices treated with resin layers, pre-glued or un-glued, designed for traditional woodworking and architectural cabinet applications.

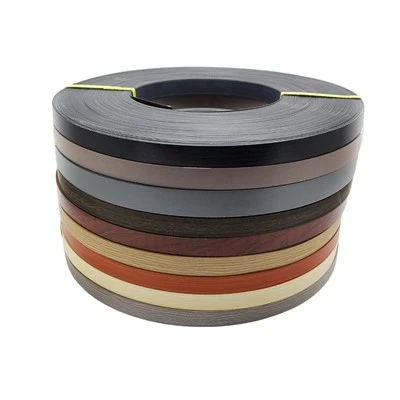

Product Range & Dimensions
Standard Panel Grade:
Thickness 0.4mm to 2.0mm. Width 15mm to 60mm. Roll length 100m, 200m, or 300m. Corona treated or primer coated.
Heavy-Duty Table Top:
Thickness 2.0mm to 3.0mm. Width 22mm to 80mm. Roll length 50m or 100m. Mechanical grooved with primer.
Thin Profile:
Thickness 0.3mm to 0.5mm. Width 12mm to 50mm. Roll length 300m or 500m. EVA pre-glued or non-glued.
Custom Extrusion:
Thickness up to 4.0mm. Width up to 150mm. Custom coil length tailored per application.
Technical Specifications
|
Quality / Performance Parameter |
Specification / Test Method |
|
Width Tolerance |
±0.1 mm, continuously verified using optical inline measuring equipment during extrusion |
|
Thickness Tolerance |
±0.05 mm across the entire strip profile to ensure smooth trimming on edge-banding machines |
|
Heat Resistance |
Vicat softening point >75°C for PVC and >95°C for ABS, helping prevent distortion during hot-melt application |
|
Flexibility Test |
Withstands 180° cold bending around a 5 mm radius mandrel without cracking or whitening at the crease |
High Gloss: Mirror-like surface finish with a gloss rating above 85 gloss units, protected by a peelable transparent protective film.
Matt: Anti-fingerprint, low-reflection surface finish with a gloss rating below 10 gloss units for modern minimalist interiors.
Wood Grain Embossed: Mechanical embossing that replicates the tactile pore structure of natural timber species.
Solid Color & Metallic Finish: Precision color-matched to RAL, NCS, or client-provided surface samples using spectrophotometer quality control.
Office Desking & Workstations: Durable edge protection for high-frequency commercial desks, conference tables, and mobile pedestals.
Modular Kitchen & Bath Cabinetry: Moisture-resistant edge banding applied to particleboard and MDF cabinet doors and carcass frames.
Retail Display Fixtures: Impact-resistant trims for store shelves, checkout counters, and exhibition display stands.
Laboratory & Healthcare Casework: Chemical-resistant ABS and PVC strips used in environments requiring frequent sanitization.
Customization Capabilities
Color & Pattern Matching:
Custom batch formulation matching client panel samples within strict color variance tolerances.
Width Slitting:
Precision splitting of master rolls down to exact widths from 12mm to 150mm.
Backing Variations:
Application of specific primer formulations optimized for client-specific glue types including EVA and PUR.
Protective Film Application:
Custom printing or plain transparent anti-scratch masking film applied to high-gloss and metallic rolls.
Manufacturing & Quality Control
Extrusion Processing:
High-precision twin-screw extruders operating under closed-loop computer control maintain stable melt pressure and uniform material density.
Online Color Monitoring:
Spectrophotometers monitor color consistency across the entire production run, automatically flagging deviations.
Adhesion Testing:
Regular peel-strength testing conducted on bonded test panels using universal tensile testing machines to verify primer bonding performance.
Dimensional Inspection:
Digital micrometer arrays measure width, thickness, and camber on every master roll before rewinding and packaging.
Packaging & Delivery
Packaging Structure:
Edge banding coils are interleaved with protective foam film, packed into sturdy corrugated export cartons, and stacked vertically on fumigation-free wooden pallets.
Moisture & Dust Protection:
Pallets are wrapped in stretch film and reinforced with plastic strapping to prevent unspooling, moisture entry, and physical damage during transit.
Labeling:
Each carton is marked with product code, thickness, width, color name, batch number, and roll length for warehouse traceability.
Shipping Terms:
Flexible FOB, CIF, or DDP containerized shipping via 20-foot or 40-foot ocean freight.
Our Factory
FAQ
As one of the most professional edge banding manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. Please rest assured to buy bulk customized edge banding at low price from our factory.
